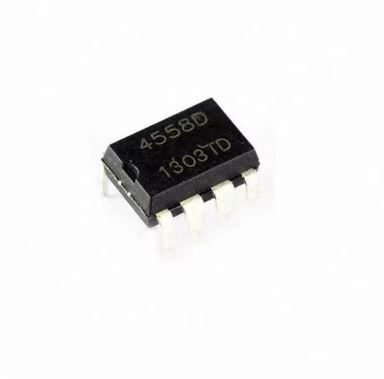

JRC4558 is a high performance monolithic dual operational amplifier. JRC4558 internally compensated and constructed on a single silicon chip. The high voltage gain (100 dB typ.), good input impedance (5 MΩ typ.) and versatile power supply (± 4 to 18 Volts) make it perfect to fit in pedal circuit designs.
Supply Voltage Range: ± 5V to ± 15V
Bandwidth: 3MHz
No. of Amplifiers: 2
No. of Pins: 8
Operating Temperature Max: 70°C
Operating Temperature Min: 0°C
Slew Rate: 1.7V/µs
Available in 8-Pin DIP and SOP Package
Application
Ground Referenced Single Amplifiers in Automobile and
Portable Instrumentation
Sample and Hold Amplifiers
Long Duration Timers/Multivibrators (Microseconds Minutes-Hours)
Photocurrent Instrumentation
Intrusion Alarm System
Comparators
Function Generators
Instrumentation Amplifiers
