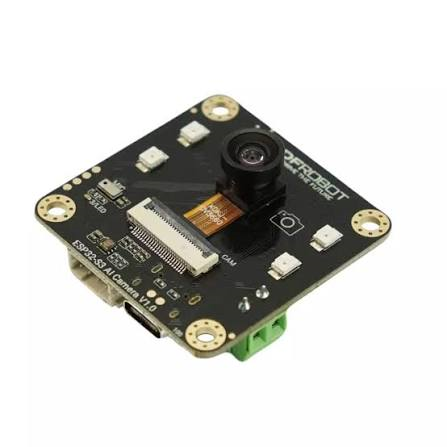

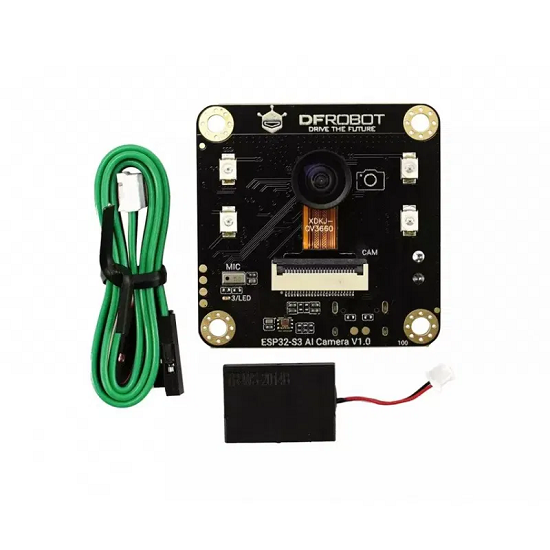

ESP32-S3 AI Camera is a cutting-edge intelligent camera module built around the high-performance ESP32-S3 chip, designed for efficient video processing, edge AI, and voice interaction. Featuring a wide-angle infrared camera, onboard microphone, and speaker, it is ideally suited for applications such as electronic peepholes, baby monitors, and license plate recognition. With powerful AI processing capabilities, it integrates seamlessly into IoT ecosystems, supporting edge image recognition and online AI model interaction through Wi-Fi connectivity, making it an essential component for IoT applications, from security surveillance to AI assistants.
Specifications
Operating Voltage: 3.3V
Type-C Input Voltage: 5V DC
VIN Input Voltage: 3.7-15V DC
Operating Temperature: -10~60°C
Module Size: 42*42mm
OV3660: 160° wide-angle infrared camera
IR: Infrared illumination (IO47)
MIC: I2S PDM microphone
LED: Onboard LED (IO3)
ALS: LTR-308 ambient light sensor
ESP32-S3: ESP32-S3R8 chip
SD: SD card slot
Flash: 16MB Flash
VIN: 3.7-15V DC input
HM6245: Power chip
Type-C: USB Type-C interface for power and code uploading
Gravity +: 3.3V
-: GND
44: IO44/TX
43: IO43/RX
RST: Reset button
BOOT: BOOT button (IO0)
SPK: MX1.25-2P speaker interface
MAX98357: I2S amplifier chip
Camera Specifications
Sensor Model: OV3660
Pixels: 2 Megapixels
Sensitivity: Visible light, 940nm infrared
Field of View: 160°
Focal Length (EFL): 0.95
Aperture (F/No.): 2.0±5%
Distortion: ＜8%
